WRX TRUCK/DRYER AUGER
Built for Harvest. Engineered to Last.

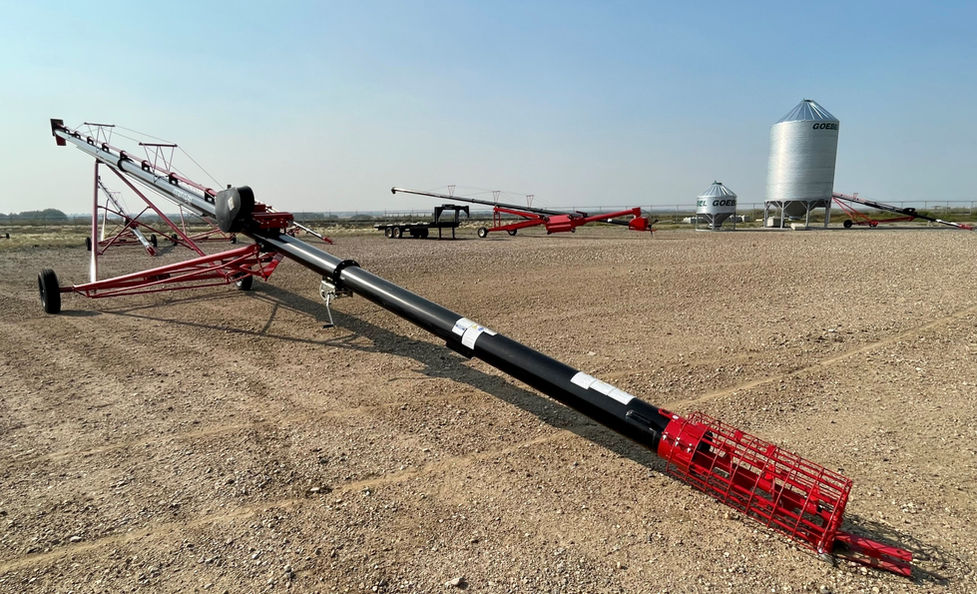

The AGI WRX Truck and/or Dryer Auger is built to handle high-capacity grain movement with long-lasting durability and performance. Key features like Wear Edge Technology™, a solid tube drive guard, and a wide range of length and drive options make it a dependable choice for busy farming operations.
KEY SPECIFICATIONS
MODEL | LENGTHS | CAPACITY | TUBING GUAGE | FLIGHTING GUAGE |
|---|---|---|---|---|
8” WRX | 31' | 36' | 41' | 46' | 51' | 56' | 61' | 71' | 76' | UP TO 3,000 BPH | 14 | 10 |
10” WRX | 31' | 36' | 41' | 51' | 61' | 71' | UP TO 4,800 BPH | 12 | 10 |
KEY FEATURES
FEATURE | DESCRIPTION |
|---|---|
HAND WINCH | Includes automatic brake; matched gearing for manual lifting/lowering |
FLIGHTING | One-bolt connection for alignment. 8" uses round, 10" uses square connection |
SOLID TUBE DRIVE GUARD | Fully enclosed driveline for clean appearance and element protection |
WEAR EDGE TECHNOLOGY™ | Adds an extra layer of steel to critical wear points, extending flight life |
UNDERCARRIAGE | Heavy-duty tubing, wide axles, lift arms, and high-speed wheels for stability |
GEARBOX | Forged steel gears, tapered roller bearings in oil for durability |
INTAKE | Shielded auger intake with quick-remove clevis and Wear Edge Technology™ |
LUBRICATED UPPER DRIVE | Heavy-duty sprockets and roller chain extend drive life |
OPTIONAL FEATURES
FEATURE | DESCRIPTION |
|---|---|
MOTOR DRIVE | Self levelling, double belt drive with adjustable tension & side start |
PTO-SHAFT DRIVE | Gearbox connected to driveshaft – use for left or right-hand drive |
PTO-BELT DRIVE | Belt run from gearbox to jackshaft – longer bin reach, PTO can extend from 48 to 68” |
HYDRAULIC DRIVE | Uses tractor’s hydraulics to run |
ELECTRIC MOTOR DRIVE | Standard option – motor mounted to side of gearbox, belt driven |
