UCX³ U TROUGH BELT CONVEYOR
The first U-trough belt conveyor of its kind — engineered for high performance and gentle handling.
The UCX³ U-Trough Belt Conveyor delivers up to 12,500 BPH with a 15" belt, combining toughness and advanced design to protect delicate seeds and commodities. It’s the next evolution in Batco conveyors, built for both performance and precision.
KEY SPECIFICATIONS
SPECIFICATION | DETAIL | AGI REBATE |
|---|---|---|
MODEL | UCX3 | $2500 |
LENGTH | 49’ | |
TUBE WIDTH | 10” U-Trough | |
BELT WIDTH | 15” | |
TUBE GAUGE | 12 | |
RAISED HEIGHT | 20 ’¾” | |
CAPACITY (SMALL SEED) | Up to 10,000 BPH | |
CAPACITY (LARGE SEED) | Up to 12,500 BPH | |
MOTOR | Vanguard 40HP EFI |
KEY FEATURES
FEATURE | DESCRIPTION |
|---|---|
WORK LIGHT KIT | Factory-installed working light kit for enhanced visibility |
COMMAND CENTER | Centralized ergonomic controls for clutch, lights, ignition, and all hydraulics |
ALL-FARM COMMODITY SYSTEM | Includes belt brush, two belt scrapers, and Turbo Clean Wash system for versatility |
ALL-NEW S-DRIVE | Easily adjustable with standard tools to prevent over-tightening pinch roller bearings |
AWD MOVER KIT | Built-in braking system, 160° turning radius, improved traction, and 15” more discharge height |

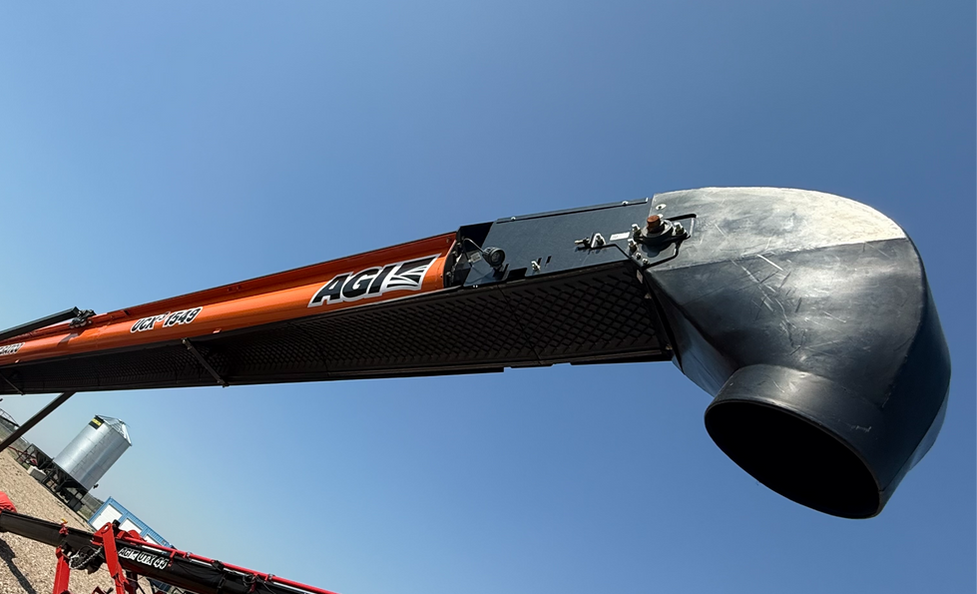

NO-NONSENSE DISCHARGE HOOD | Straight-down geometry promotes clean, efficient grain flow without need for extra downspouts |
DIRECT Xᵀᴹ BELT | Belt with Double Edge Seal ensures a tight seal between flashing and belt without restricting grain flow |
REDESIGNED HOPPER | 32" parallel width with urethane seals, stiffened hopper cloth, and urethane flashing to reduce spillage |
